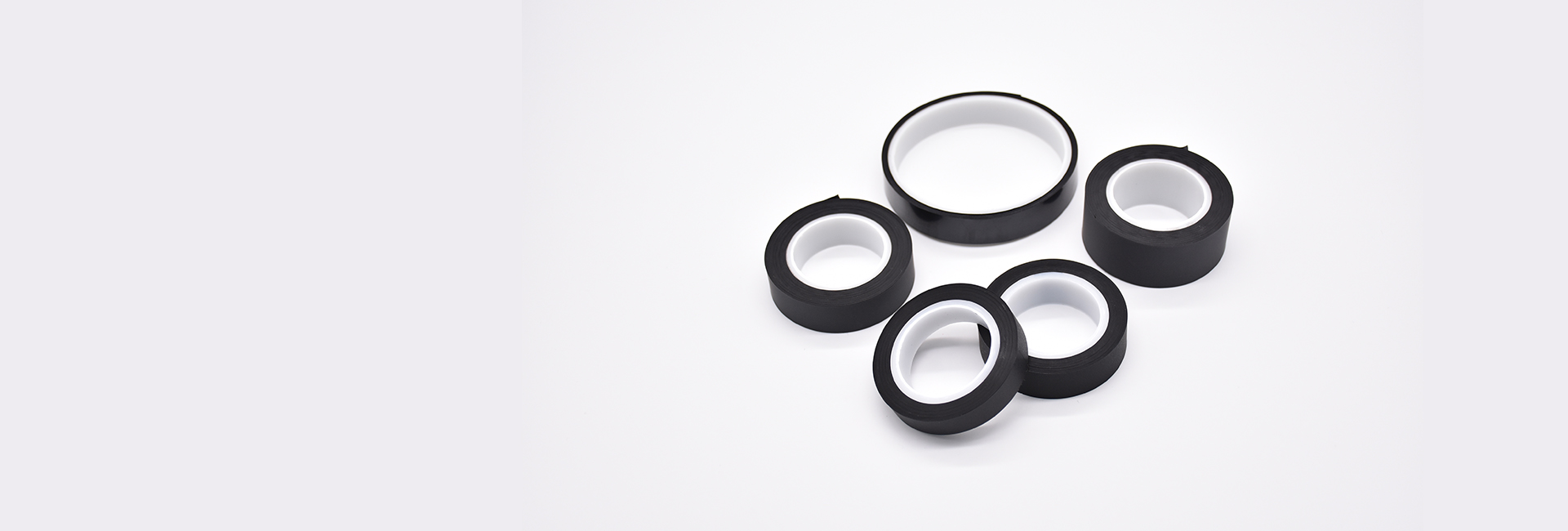

Hotbar consumables - PI film
The PI film has the advantages of superior high temperature resistance electrical insulation adhesion radiation resistance and media resistance and can be used for extended period of time in the temperature range of -269°C to 280°C. The glass transition temperatures are 280°C/385°C and above 500°C respectively. It is especially suitable for use as flexible printed circuit board substrate and various high temperature resistant electrical motor and appliance insulation materials.
Online message| Regular Size | |
| 25μm*15mm*33M | |
| 0.08mm*12mm*15M | |
| 0.08mm*17mm*15M | |
| 0.08mm*25mm*15M | |
| 0.15mm*24mm*15M | |
| Customization for non-standard sizes is provided |
PI composite silicone film is mainly used in high-temperature soldering process. The specific applications include the scenarios of tablet PC smart watch soft and hard board soldering process and other highly demanding processes.。
