UV curing machine
Mainly designed for coating UV surfaces of rubber casings of electronic products, Dixon UV curing ovens can cure UV glue and UV ink of different kinds. We use imported high-effect UV light sources to ensure the coating quality, improve the curing effect, and accurately control the light intensity with their advantages of low consumable and long life.
Online message

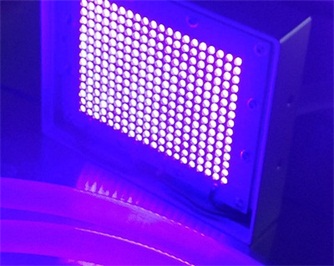

Imported UV lamp
The UV lamp with dust-resistant thick walls long life great stability.
High temperature alarm mode
The temperature controllers monitor the temperature in the ovens on line and have high temperature alarm mode.
Adjustable lamp height
The lamp can be height-adjusted by 100mm and are lamps applicable for more extensive glue.
Good sealing
The ovens are well sealed on the outside without light leakage on the sides.
| Power supply | 220V ~ 50 Hz | ||
| External dimension | L700*W850*H1350（mm） | ||
| Light source | 800W 4PCS | Power density | 80w/cm2 |
| Temperature | Approx. 80℃ | Main peak wavelength of UV | 365nm |
| Max. energy | 1000mj/cm2 | Light intensit | 100mw/cm2 |
| Conveyor material | Chain track | Conveying speed | 0-3m/min |
| Conveying width | 500MM | Effective irradiation breadth | 500MM |
| Conveyor inlet height | 10~180MM | Cooling mode | Air cooling |
| Total power | 3.8KW | Total weight | Approx. 180KG |
